3G15X-XX-X

GPS L1 FRPA

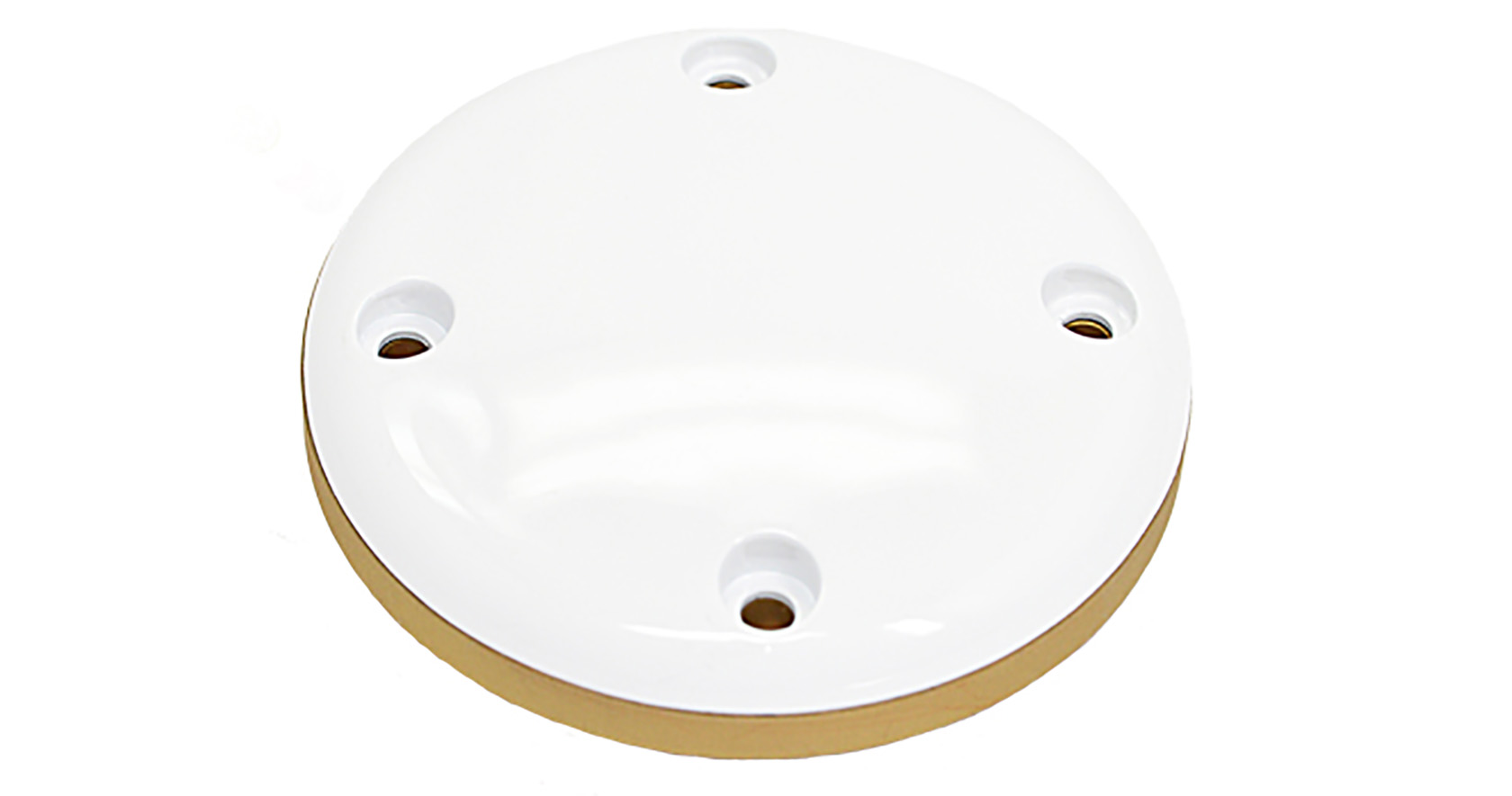

Image of 3G15X-XX-X

The 3G15X-XX-X product family provides Global Positioning System (GPS) signal reception in the L1 frequency band. This product family is designed to the standard Fixed Reception Pattern Antenna (FRPA) mounting footprint for easy integration onto new and existing platforms. The rugged enclosure can withstand harsh environmental conditions seen in military, aerospace and other applications.

Antcom can customize this product family to meet your specific requirements. Please contact us for more information about customization options.

Benefits

  • Rugged GPS L1 antenna
  • Standard FRPA mounting footprint for easy platform integration
  • Various standard options available and customizable options are available for order

Features

  • GPS L1 with M-Code support
  • FRPA footprint offers thru-hole mount or bottom-mount
  • Passive or active (amplified) configurations available
  • Active configurations offer 2-stage integrated bandpass filtering with diode limiters
  • Connector options available
  • Paint color options available

Options

Color

  • Gloss White
  • Lusterless Gray
  • Camo Green
  • Lusterless Black
  • Desert Tan

Connector

  • SMA
  • MCX
  • Type N
  • TNC

LNA Gain

  • 33 dB LNA
  • Passive

Attributes

Electrical Frequency Range:
      L1 GPS 1575.42 ± 12 MHz
  VSWR < 2.0:1
  Impedance 50 ohms
  Polarization RHCP
Mechanical & Environmental Weight 6.3 oz Typical
  Temperature -55°C to +85°C
  Altitude 70,000 ft
  Vibration > 30 Grms
Typical LNA Performance LNA Gain See Options Table
  LNA Noise Figure 3.5 dBB
  LNA P1dB Out +13 dBm
  LNA DC Power (3.8 - 15) V
< 40 mA
Limiting & Filtering Power Handling 1 Watt CW
